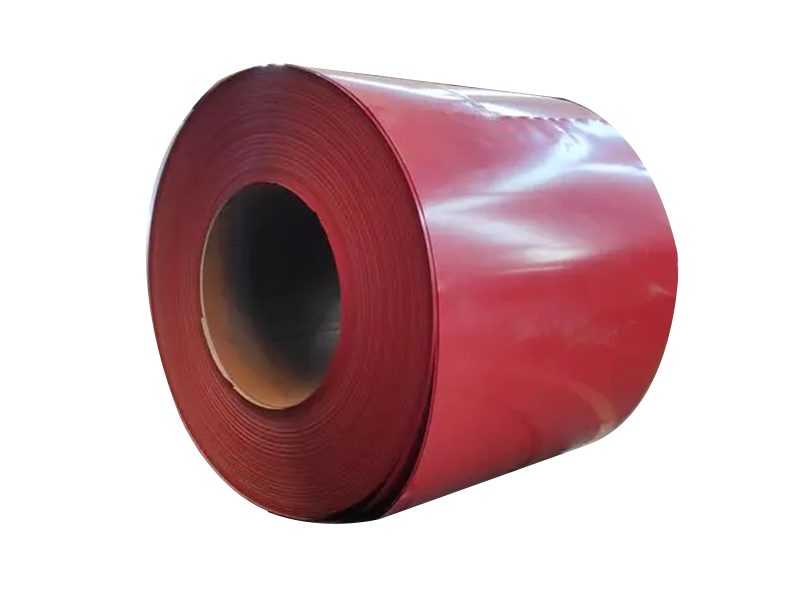

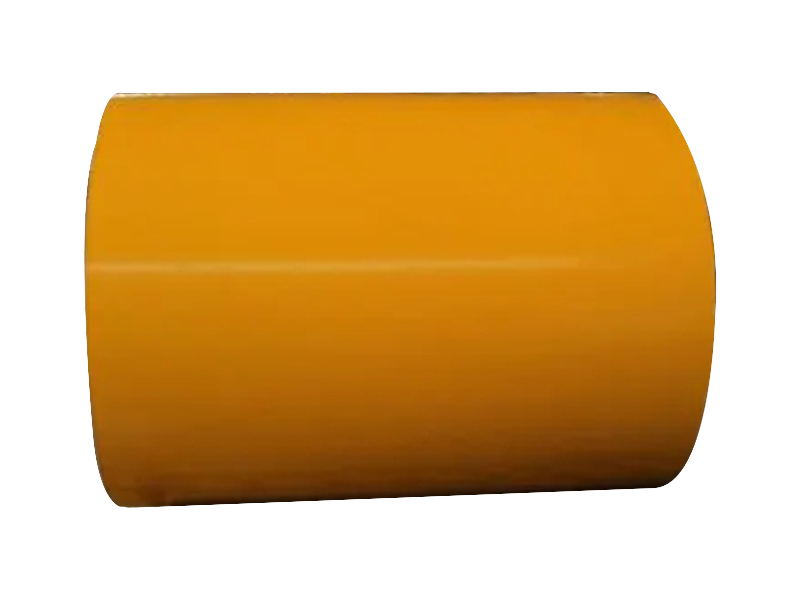

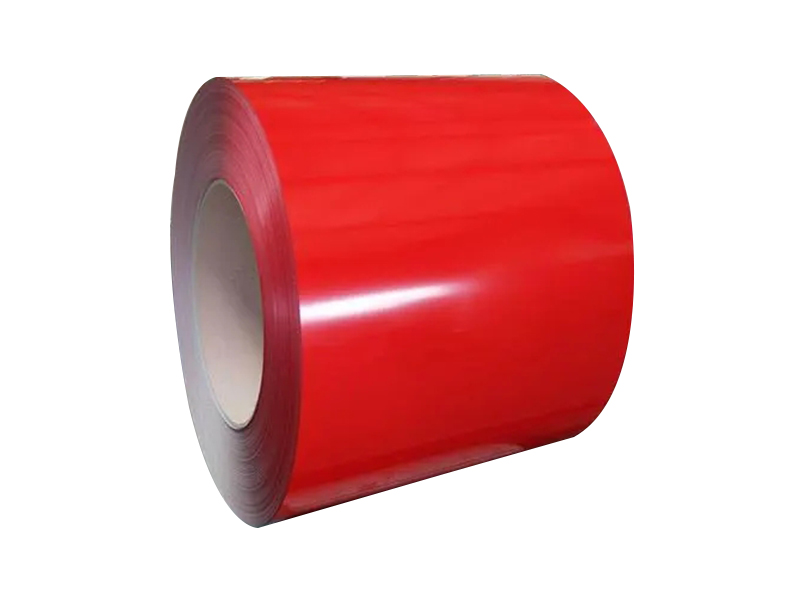

PPGI/PPGL Coil
G350 G550 Spcc Galvanized Steel Sheet Coil Prepainted Dx51d For Roofing Sheet
FeaturesDescription
Basic Info.
Color coated coil is hot galvanized plate, hot galvanized aluminum zinc plate, galvanized plate and other substrates, the surface pretreatment (chemical degreasing and chemical conversion treatment), on the surface coated with a layer or several layers of organic coating, and then after baking curing products.
Color roll style can be customized according to customer
Folding polyester (PE)
Good adhesion, rich color, wide range in formability and outdoor durability, medium chemical resistance, low cost.
Folded silicon modified polyester
That is, (SMP), the film has good hardness, wear resistance and heat resistance, as well as good external durability and resistance to powder, gloss retention, general flexibility and medium cost.
Folded polyester with high durability
(HDP), excellent color retention and uv resistance, excellent outdoor durability and resistance to powder, good adhesion of paint film, rich color, excellent cost performance.
Folded polyvinylidene fluoride
Namely (PVDF), excellent color retention and uv resistance, excellent outdoor durability and resistance to powder, excellent solvent resistance, good molding, dirty resistance, limited color, high cost.
| Standard | ASTM A653, JIS G3302,GB/T3830-2006 |
| Grade | Q195-Q235, SPCC, SPCD, SPCE, SGCC (DX51D+Z), SGCD (DX52D+Z), etc |
| Thickness | 0.14-0.8mm |
| Width | 10-1250mm(762mm,914mm,1000mm,1200mm,1219mm,1220mm,1250mm,) |
| Base metal | prepainted galvanized steel coil |
| Zinc coating | 40-275gsmm |
| Coil ID | 508mm/610mm |
| Coating thickness | Top:17-25um back:5-8um |
| Color options | Ral number or as per your request |
| Packing | Standard seaworthy export packing: 3 layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve. |
| Delivery | Within 5-10days after signing contract |
| Price | FOB&CNF&CIF price |
| Payment terms | TT or LC |
| Monthly supply | 5,000MT per month |
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.
